Up for sale is a used REI Oscor Blue 24 GHz Spectrum Analyzer model OBL-24. It has been tested and the firmware has been updated.Condition: Used
The OSCOR Blue is a portable spectrum analyzer with a rapid sweep speed and functionality suited for detecting unknown, illegal, disruptive, and anomalous rogue transmissions across a wide frequency range. The OSCOR Blue Spectrum Analyzer is designed to detect illicit eavesdropping signals, perform site surveys for communication systems, conduct radio frequency (RF) emissions analysis, and investigate misuse of the RF spectrum.
Efficiency: sweeps 24 GHz in one second to quickly detect transmitting electronic surveillance devices and ensure that spectrum activity is captured
Usability: captures comprehensive signal activity without missing signals due to limited antenna range or from having to switch external antennas
Portability: complete integrated spectrum analyzer system with built-in antennas and analysis software, small and hand-held for easy mobility
OSCOR Blue sweeps 24 GHz in 1 second in 12.2 kHz steps. Fast sweep time, built-in antennas, and on-board software make the OSCOR Blue easy and quick to deploy, optimizing total operational speed.
Seamless real-time spectrum visibility from 10 kHz to 24 GHz using the integrated auto-switching multi-antenna system.
The OSCOR Blue is lightweight (9.6 lbs./4.4 kg), small and hand-held for easy mobility through target areas while collecting trace data.
REI’s trace analysis functionality adds dimension by providing full analysis of trace data on-board. Perform trace analysis on-screen without the need for a laptop.
OSCOR Blue can subtract a reference trace from a target sweep trace, and then create a signal list from the difference trace, very quickly showing a list of signals unique to the target area.

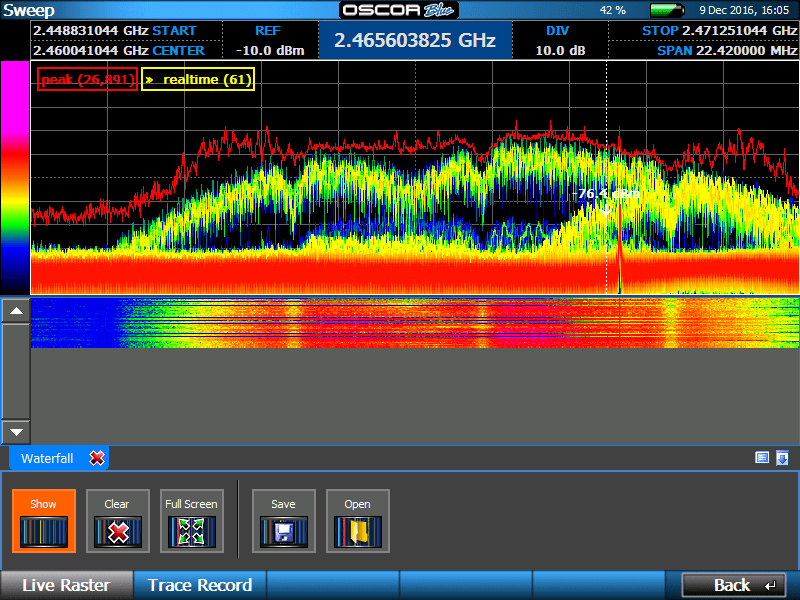

Waterfall analysis captures and records signal peak traces over time for historical analysis of spectrum activity.
Signals are easily located based on RSSI level change and near field locating function.

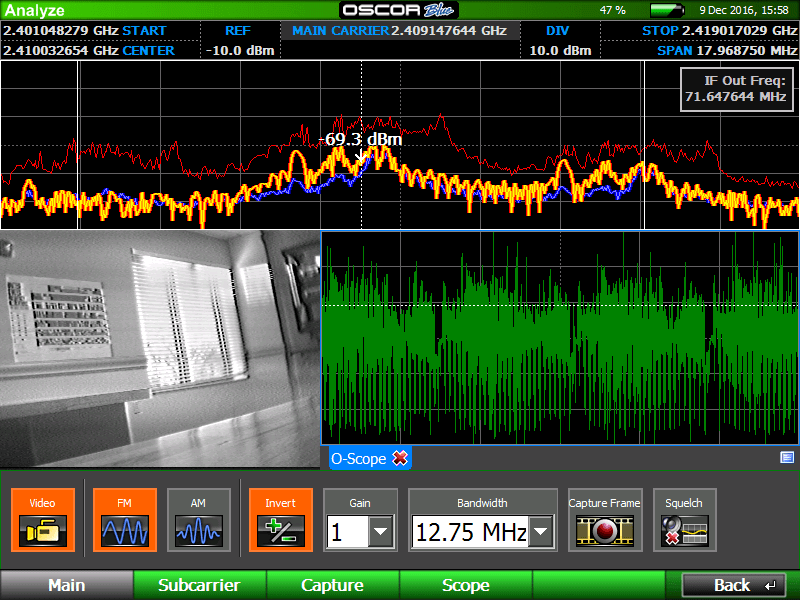

Continuous spectrum update while using built-in suite of demodulators (audio, video).
OSCOR Blue includes a Multi-Purpose Probe that plugs into the Auxiliary port for capturing carrier current, IR, CATV (F Connector), VLF Antenna.
Technical Surveillance Countermeasures (TSCM)
Radio Frequency (RF) Detection
Radio Frequency (RF) Analysis
Surveillance Equipment Detection
Electronic Surveillance Detection
Installing the OSCOR Data Viewer on a PC:
1. From Windows Explorer, double click the ”OSCOR Data Viewer.msi” file, or right-click the file and select Install.
2. Follow the instructions on the Setup Wizard.
3. After the OSCOR Data Viewer installation is complete, the program can be run from Windows Start Menu.
Windows XP SP3, Windows Vista, Windows 7,Windows 8, or Windows 10 operating systems
Microsoft .NET Framework 4.0 (Full)
DirectX 9.0c or later
Note: Microsoft .NET is a framework for creating software applications that run primarily on Microsoft Windows. Windows PCs typically have Microsoft .NET installed or included with the operating system. However, you may find that you need to upgrade to version 4.0 to install the OSCOR Data Viewer. If the application installer prompts you to install the Microsoft .NET Framework, then you do not have the required version. To install Microsoft .NET 4.0, follow the download link from the installer. After installing Microsoft .NET, restart the OSCOR Data Viewer install. Contact your system administrator if you need help installing .NET.
|RF SYSTEM - 24 GHz||Frequency: 24 GHz Model (OBL-24): 10 kHz to 24 GHz
Displayed Average Noise Level (DANL) (25 kHz Resolution Band Width); Without preamp: -100 dBm; With preamp: -110 dBm
Sweep speed: 24 GHz/second
Preamp: DC-8 GHz: 10 dB
Attenuation: DC-24 GHz: 0 dB, -10 dB, -20 dB, -30 dB
Dynamic Range: Min/Max Range: 90 dB; SFDR: 80 dB
|Audio||Demodulation types: AM, FM
Filter sizes: 800 khz, 200 kHz, 12.5 kHz, 6.25 kHz, 2 kHz
Subcarrier filters: 6.25 kHz, 12.5 kHz, 200 kHz
|Video||Formats: NTSC, PAL, SECAM
Demodulation: AM, FM
Filter sizes: 12.75 MHz, 6.375 MHz
Subcarrier filters: 6.25 kHz, 12.5 kHz, 200 kHz
|Antenna||Built-in auto switching antenna system
Frequency: 24 GHz Model (OBL-24): 10 kHz (useable) to 24 GHz
|Input / Output||Aux RF in: 10 kHz to 8 GHz
IF out: 25 MHz wide centered at 75 MHz
Baseband out: DC – 6 MHz
Expansion: Aux Control Port for MPP
|User Interface||Integrated touch screen with 8.4” display
Soft keys and rotary optical encoder
USB Port (A type): for peripherals (Keyboard, Mouse)
Ethernet port for VNC remote access
|External Storage Capability||Compact Flash (CF) slot
|Power Supply||Universal power supply included: 100-240 VAC, 50-60 Hz
Removable battery: Rechargeable Lithium ion, 4-hour runtime (typical)
|Operating Temperature||0 to 55 °C|
|Dimensions||29.2 x 33.5 x 7.6 cm|
