REI TALAN 3.0 Telephone & Line Analyzer
Buy REI TALAN 3.0 Telephone & Line Analyzer detects and locates illicit tampering and security vulnerabilities on digital, analog, and VoIP telephone systems.
Condition: New
Sale REI TALAN 3.0 Telephone & Line Analyzer detects and locates illicit tampering and security vulnerabilities on digital, analog, and VoIP telephone systems.
Accessories Included:
Probes & Antennas
- RF Probe: Test for RF energy coming from a telephone. Frequency response of 10 MHz - 2 GHz. Part Number: 6-00003
- DA-8000 Directional Antenna: Test for RF energy coming from a telephone. Part Number: 9-00012
Power
- Lithium-ion Rechargeable Battery – 8.7Ah
- An 8.7 amp hour lithium-ion battery for the following REI products: OSCOR Green, OSCOR Blue, & TALAN 3.0. Part Number: 0-RB250

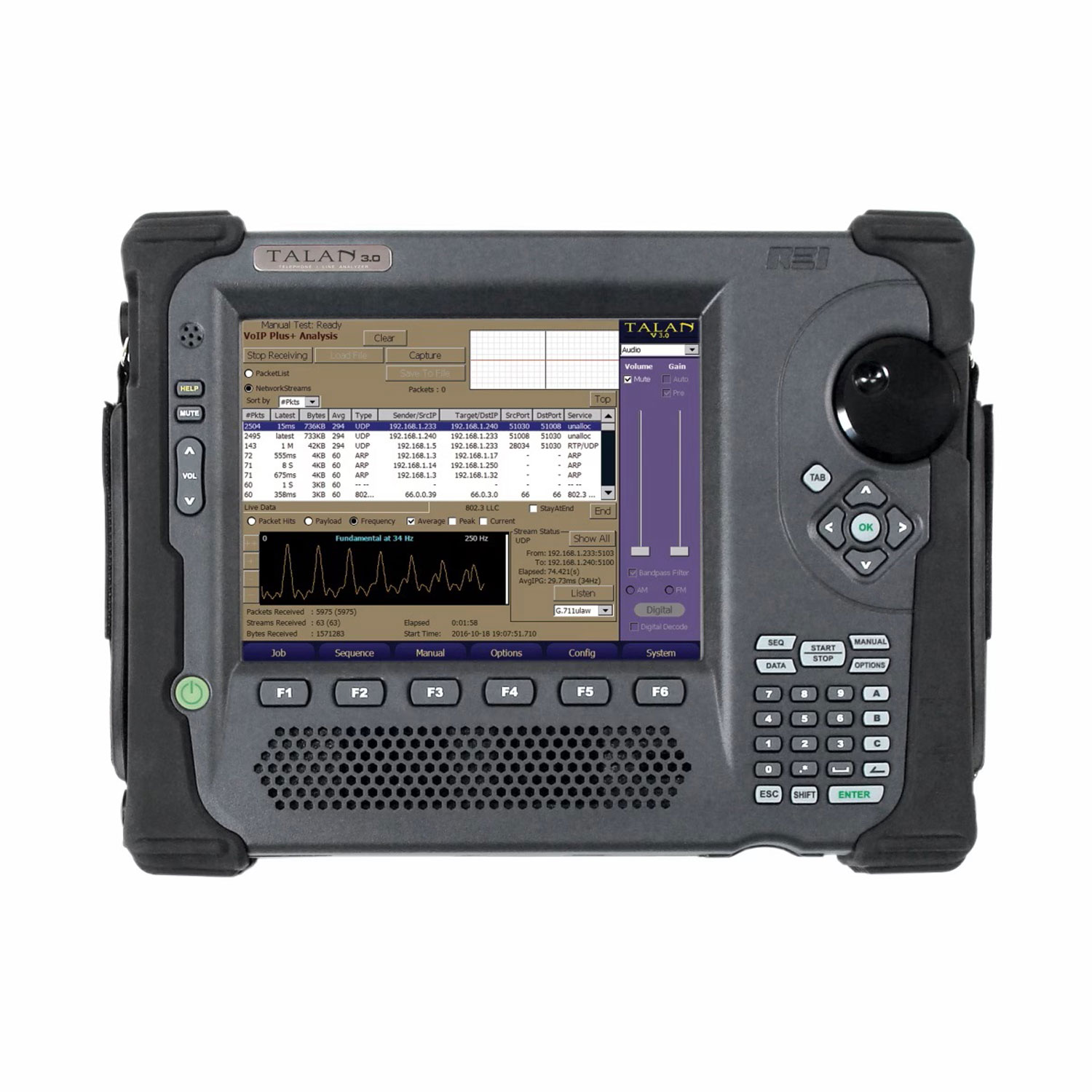

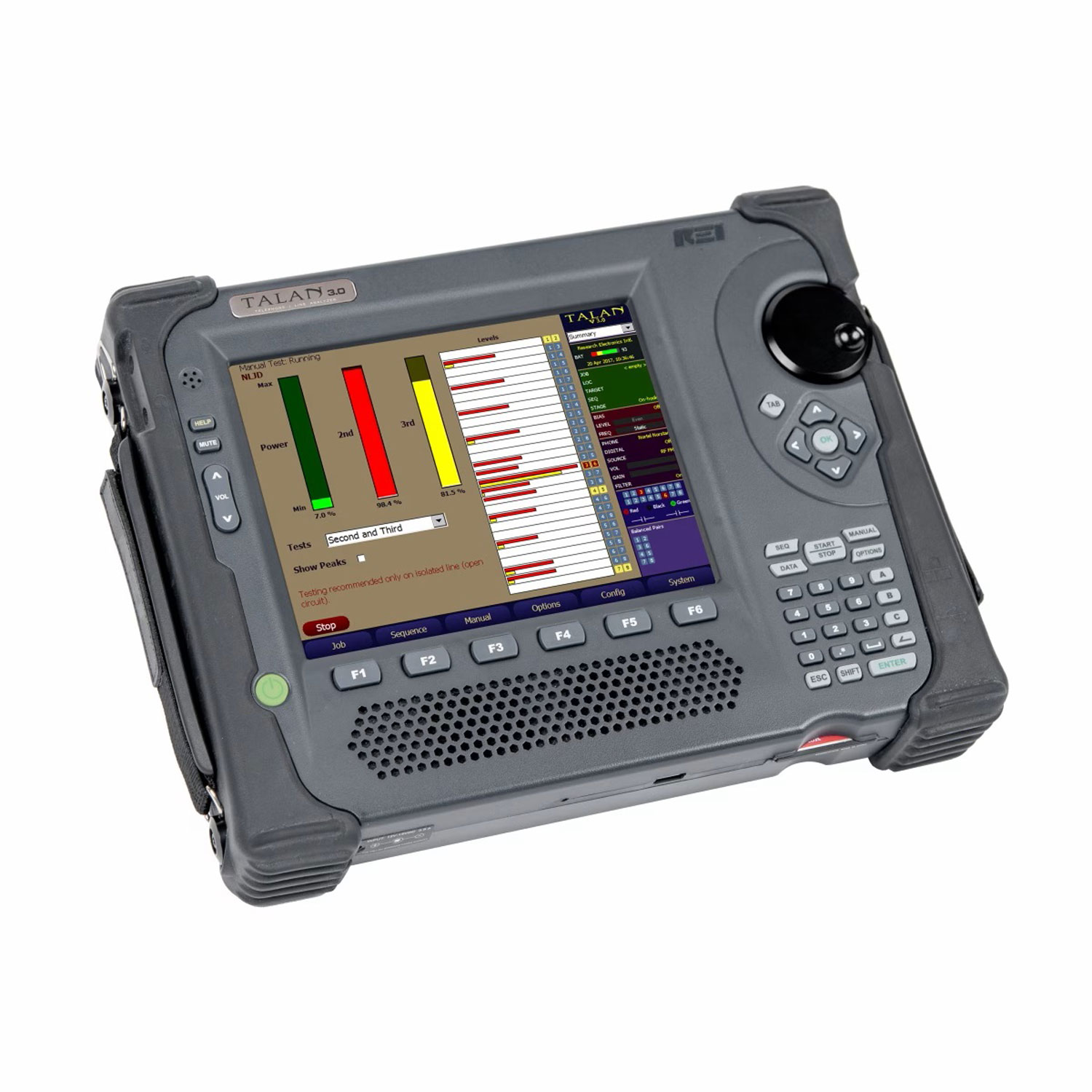

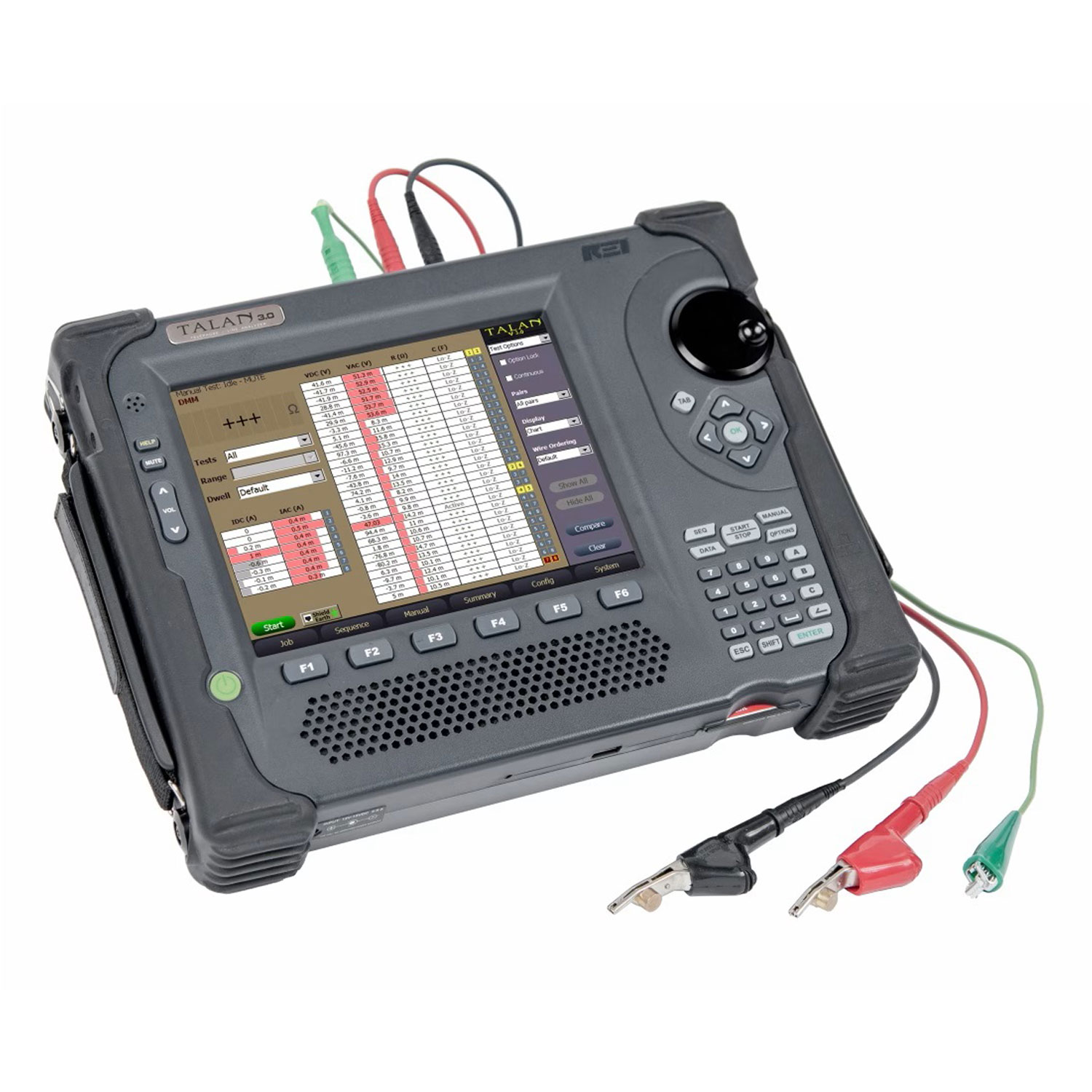

REI TALAN 3.0 Telephone & Line Analyzer
REI TALAN 3.0 Telephone and Line Analyzer represents advanced capability to detect and locate illicit tampering and security vulnerabilities on digital, analog, and VoIP telephone systems. New hardware provides the ability to test twisted pairs against modern telecommunication threats including shield and ground.
Suite of Telephone Tests Including an Automatic Switching Matrix
The TALAN includes a built-in automatic switching matrix for testing all pair combinations. For example, if a cable has 8 conductors, there are 28 combinations of pairs to test; the TALAN can automatically switch through all combinations, performing test functions and storing test results for comparison.
Efficiency: compares the results of multiple tests on multiple phone lines to quickly identify threatening anomalies
Usability: combines several countermeasure testing capabilities into a single piece of equipment (voltage, current, resistance, capacitance, non-linear junction detection, frequency domain reflectometry, and digital demodulation technology)
Portability: weighs only six pounds and data can be exported for further analysis and reporting
Features:
- Combines multiple testing capabilities into a single piece of equipment
- Automatic internal pair switching matrix performs tests on all pair combinations
- Extensive, advanced VoIP traffic filtering makes it easier to locate and identify suspicious packet information
- The patent-pending Fast Fourier Transform (FFT) algorithm converts network traffic into a spectrum view, creating visually identifiable patterns not easily noticed in a traditional packet list
- Quickly performs common test functions including:
- Multimeter tests (voltage, current, resistance, capacitance)
- RF Broadband Detector (up to 8 GHz)
- Spectrum Analyser (up to 85 MHz)
- High Gain Audio Amplifier
- Bias Generator ±80 VDC
- Audio Oscilloscope with active input (20 Hz to 20 KHz)
- Digital demodulation available to confirm that the telephone line is not passing audio
- Frequency Domain Reflectometer (FDR) to check for taps on the line
- Non-Linear Junction Detector (NLJD) functionality to detect electronics connected to a line
- Multi-test database system provides the ability to perform tests on all pair combinations, storing data for historical comparison and comparison against other lines.
Applications:
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Wire Tap Detection
- Telephone Line Testing
- Phone Line Analysis
- Eavesdropping Detection
- Intelligence Protection
- Executive Protection
- Surveillance Equipment Detection
- Electronic Surveillance Detection.
Specifications
Control System
- Primary computer: 32 bit RISC processor, 520 MHz
- Internal memory: 64 MB SDRAM (OS), 64 MB Flash
- External memory: Compact Flash Type III, USB mass storage.
Digital I/O
- Network: 10/100 Ethernet Controller for IP Packet Detection
- USB: USB Device (A Type) supports external keyboard, mouse, and USB mass storage device; USB Host (B type) for future use.
Analog I/O
- Headphone output: 3.5 mm mono connector
- Microphone input: 3.5 mm mono input.

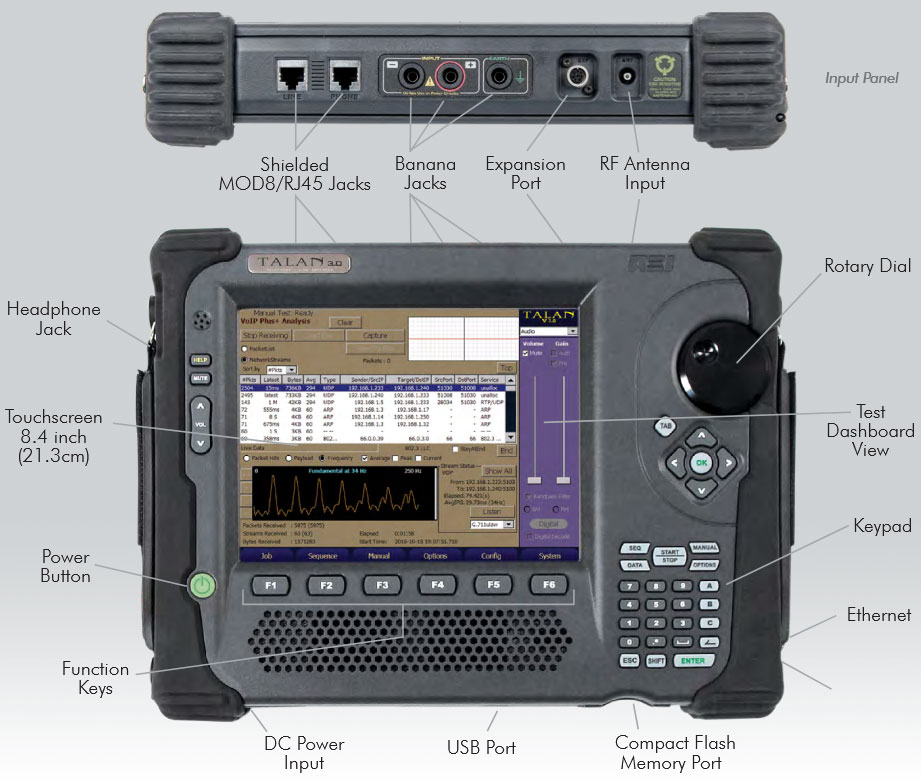

User Interface
- Hard keys: 6 soft menu keys, 5 button quadrant navigation & other dedicated keys
- Encoder: high-resolution optical encoder
- Integrated touch screen with stylus
- Test inputs:
- Dual MOD8: supports 2, 4, 6, & 8 wire modular phone jacks with shield
- Banana type: standard sleeved sockets: ring, tip, and earth
- SMB RF input: RF/antenna connection to 8 GHz broadband detector
- Expansion port: supports communication & measurement for use with future accessories
- All inputs electrically isolated.
RF System
- Spectrum Analyser:
- Dual conversion, super-heterodyne receiver
- Frequency range: 30 kHz to 85 MHz
- Sweep time: 2 Seconds
- Step size: 1 kHz
- Bandwidth: 18 kHz
- Sensitivity: -100 dBm
- Broadband Detector:
- RF SMB input: to 8 GHz
- Line level test: 100 kHz to 600 MHz
- Sensitivity: -65 dBm.
Digital Multimeter
- Quick response auto-ranging: 500msec Sample Rate
- AC/DC Volts: 0 to 250V Maximum
- AC/DC Current: 0 to 300mA Maximum
- Resistance: 0 to 42MΩ
- Capacitance: 50pF to 40µF.
Bias Generator
- Optically isolated, direct digital control: high voltage DAC
- Output ceiling: ± 80 V
- Output ceiling (shield): ±65VDC, ±33VAC
- Modulation: fixed voltage, or variable rate Sine wave (10 Hz – 300 Hz).
Audio
- Audio bandwidth: 20 Hz – 20 KHz
- Gain: Up to 80 dB total system gain (voice band)
- AGC: digitally controlled automatic gain
- Filter: analog voice band filter (300 Hz to 3 kHz).
Power
- External input: 15 VDC @ 3A
- Universal power supply: 100-240 VAC, 50-60 Hz
- Removable battery: Rechargeable Lithium ion, 4-hour runtime (typical).
Mechanical
- Dimensions: 10 in x 12.9 in x 2.7 in (25.4 cm x 32.8 cm x 6.9 cm)
- Unit weight with battery: 6 lbs (2.7 kg)
- Case dimensions: 19.5 in x 14.9 in x 5.4 in (49.5 cm x 37.8 cm x 13.7 cm)
- Case weight including unit and accessories: 19 lbs (7.1 kg).
Thermal
- Operating temperature: 0°C to +50°C.
